Automatic Dispenser With Lcd 5-Inch Color Screen Display Hot Bar Soldering Machine CW-31DJ
Feature:
● Could be a particular dispensing operations, mechanized production
● Simple and convenient to operate, high-speed precision
● Program files can be uploaded/downloaded through U disk, easy to manage
● Has control buttons on the needle, no external teaching is more convenient than similar products debugging
● Used LCD 5-inch color screen display
● Does not cause noise pollution to production sites
● Enabling 3D dispensing systems, regardless of any complex shape and dispensing path can be accurately completed
● Can be equipped with single-tube or pipe dispensing, improve efficiency in the realization of different glue or dispensing path
● Used for in all kinds of demand dispensing industry, such as:
general common UV plastic, silicon, EPOXY, red gum, paste,AB glue, COB vinyl, conductive plastic, aluminum heat glue,instant glue, paste and other points glue, can be used on the D-series devices.
Specification:
| Travel RangeX/Y/Z | 300/300/100(mm) |
| Table Max Load | 10KG |
| Moving SpeedXY/Z | 0.1-800/400(mm/sec) |
| Analytical Ability | 0.01mm/Axis |
| Repeatability | ±0.01mm/200mm |
| Program Recording Capacity | 1000 |
| Display | 5 Inch LCD |
| Motor | Japan micro-level precision stepper motor |
| Moving Mode | Point to point, Continuous line |
| Transmission | Japanese belt,Precision linear guide |
| Motion Makeup Function | 3 Axis |
| Edit Mode | Teach box or computer file input |
| I/O Signal | 6In puts 6 Out puts |
| Power | AC 220V/350W |
| Operating Temperature | 5-40℃ |
| Operating Humidity | 20-90%(no condensation) |
| Weight(kg) | 62.5 |
| Size(mm) | 522 x 560 x 565 |
Our best service:
| 1.Engineers available to service machinery oversea. | Engineers are available to be sent to freign countries to do machinery training and offer technical support.
|
| 2.Mature technique & forerunner to process makes high quality machinery.
| As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router machine
Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
| 3.Effective customer service. pcb router machine
| All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers.
|
| 4.One year warranty for the machines except accessories. b router machine
| Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge.
|
| Our mission:
| Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
| Our Vision:
| PCB industry to become the world's leading solution providers PCB separator. pcb router machine
|
Applications:
★ LED package
★ Mobile phone plate coating or dispensing button
★ Speaker Dispensing
★ Dispensing sealing the battery case
★ The semiconductor package
★ Power component package
★ chip binding
★ Fixed and protected PCB electronic components
★ LCD glass board package
Cooperative clients recommendation:
CE approval:
Product Tags:
|
|

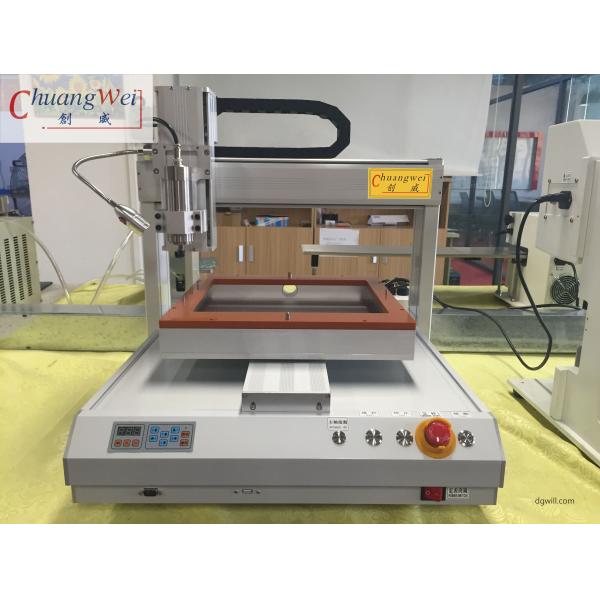

PCBA depaneling router PCB Cutting Machine table desktable Images
|
